The DLL5010-M presents a leap forward in laser scanning technology.
Continuing on the successful path traced by the DL910 in regards to its unique design and ergonomy, Datalogic launches a new laser reader studied to address specifically RETAIL, OFFICE AUTOMATION and light LOGISTICS applications.
Based on observations and extensive biomechanical engineering, the DLL5010-M is designed to be easy-to-use, comfortable to hold, and intuitive to operate in both standing or sitting situations. Its design is pleasant to eye and light in hand, yet, at the same time, very robust. It can resist repeated drops onto a concrete surface from up to 1.5 m.
A choice from two different scanning engines guarantees the best possible solution to a specific application. The General Purpose (G.P.) model is designed to be a versatile solution for the retail and office automation sectors. The Very High Density (V.H.D.) model is able to read codes down to a narrow bar width of only 0.06 mm (2.5 mils)! It is therefore ideal for use in the electronics and pharmaceutical industries. An integrated multistandard decoder is standard in all models and provides reliable reading of damaged and even marginal specification codes. Plus, the three interface possibilities (Pen Emulation, RS232 and Wedge) and plug-in cables allow integration into any system.
Data Collection in commercial and office automation environments:
- EPOS
- Libraries
- Pharmacies
- Banks
- Insurance Companies
Rental Companies Data Collection in light industrial environments:
- Work-in-Progress
- Production Control
Models
DLL5010-01
General purpose scanning engine with push button, TTL/Laser output
DLL5010-M1
General purpose scanning engine with push button, multistandard decoder
DLL5012-M1
Very High Density scanning engine with push button, multistandard decoder
Accessories
CAB340
RS232 coiled cable, 9-pin female connector (DCE config.)
CAB341*
RS232 coiled cable, 25-pin female connector (DCE config.)
CAB342**
IBM PS/2 wedge coiled cable, minidin connector
CAB344
IBM AT/XT wedge coiled cable, din connector
CAB343
Pen emulation coiled cable, 9-pin male connector
CAB339
TTL/Laser straight cable, 9-pin male connector
CAB337
RS232 straight cable, 9-pin female connector (DCE config.)
CAB333*
RS232 straight cable, 25-pin female connector (DCE config.)
CAB329*
RS232 straight cable, 25-pin male connector (DTE config.)
CAB330
IBM PS/2 wedge straight cable, minidin connector
CAB331
IBM AT/XT wedge straight cable, din connector
CAB334
IBM vdt. 31xx, 32xx, 37xx wedge straight cable, din 240¡Æ connector
CAB335
IBM vdt. 3151, 34xx wedge straight cable, 8-pin telephone connector
CAB336
IBM vdt. 3153 wedge straight cable, 6-pin telephone connector
CAB332
Pen emulation straight cable, 9-pin male connector
ADP-102
5P din T-pass adapter
ADP-103
6P minidin T-Pass adapter
Operator's Manual
SPC5010
Desk/Wall holder for DLL5010
STD5010
Retail stand for DLL5010
PG5 (110 Vac)
Power supply unit
PG5 (220 Vac)
Power supply unit
*Power supply available on pin 9 or 25 of the connector.
**CAB342 SH1739 (cod. 90A051150) also available for Notebook and IBM SureOne cable, minidin connector.
SPECIFICATIONS
POWER SUPPLY
4.75 to 14 Vdc (DLL5010-01); 5 Vdc ±10% (DLL50xx-Mx)
CONSUMPTION
100 mA @ 5 Vdc, 140 mA max.
OPERATION
Bidirectional retrocollective scanning
LIGHT SOURCE
Laser diode at 670 nm, 0.8 mW (G.P.); 0.39 mW (V.H.D.)
MAX. RESOLUTION
0.12 mm, 5 mils (G.P.); 0.06 mm, 2.5 mils (V.H.D.)
SCAN RATE
36 (±3) scans/sec.
MIN. PRINT CONTRAST RATIO
PCS = 15%
READING FIELD
See diagrams
READING ANGLE
Skew: ±60°
Pitch: 5 to 55°, -5 to -55°
Tilt: ±20°
READING INDICATORS
LED and adjustable tone "beeper"
READABLE BAR CODES
2/5 family, Code 39 (plus Code 32, Cip 39), EAN/UPC, EAN 128,
Code 128, Code 93, CODABAR
PROGRAMMING METHOD
Manual: Reading special bar codes
Automatic (with RS232): S/W commands through the serial port
Sm@rtSet™: Windows configuration program
INTERFACES
RS232, Wedge (PC IBM AT/PS2, IBM SureOne, IBM terminals: 31xx,
32xx, 34xx, 37xx, 3153), pen emulation
DIMENSIONS
225 x 65.5 x 63 mm (8.86 x 2.58 x 2.48 in.)
WEIGHT (approx.)
180 g (6.35 oz.)
CASE MATERIAL
ABS
CABLE LENGTH
2 m (6.1 ft.) linear or coiled
LASER CLASSIFICATION
Class 2 (IEC 825-1 and CDRH) G.P.
Class 1 (IEC 825-1 and CDRH) V.H.D.
AMBIENT LIGHT CONDITIONS
Immune to light exposure in offices and facilities, and direct
exposure to sunlight
OPERATING TEMPERATURE
0 to 40 °C (32 to 104 °F)
STORAGE TEMPERATURE
-20 to 60 °C (-4 to 140 °F)
HUMIDITY
90% non condensing
DROP RESISTANCE
IEC 68-2-32 Test ED; resists repeated falls from 1.5 m onto a
concrete surface
ENVIRONMENTAL PROTECTION
IP30

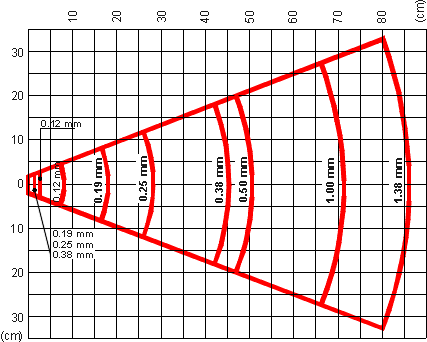

General Purpose Models

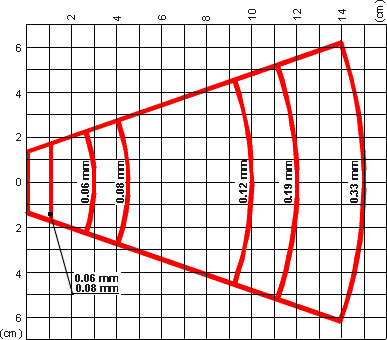

Very High Density Model
|
